Also known as: card with popup, story cards, profile cards, card with plus sign, expandable card
Description
A card displaying a photo and brief teaser copy. When selected, the card opens a modal (popup) with more details about the topic or person.
Design

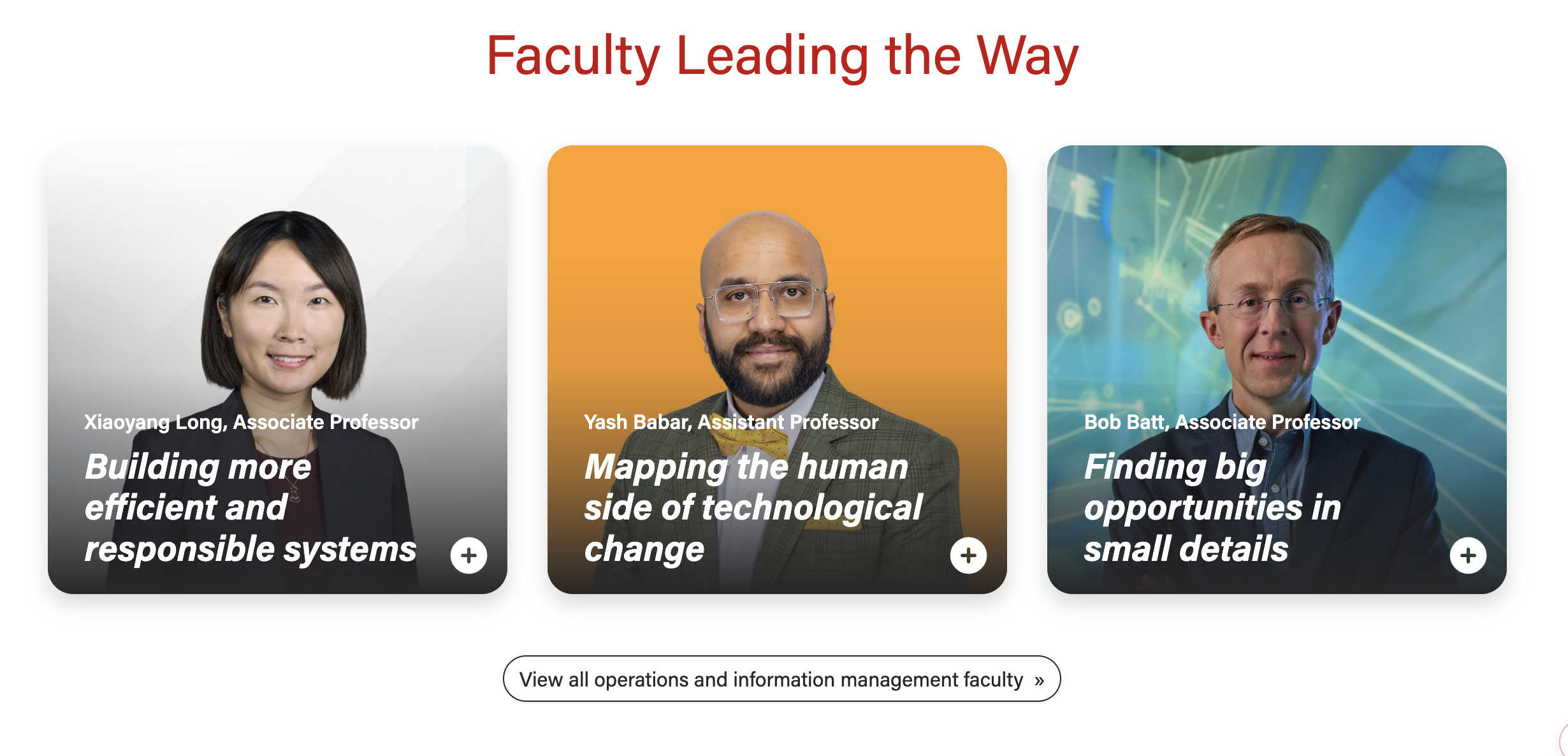

Cards with environmental or portrait photosSource: OIM Department

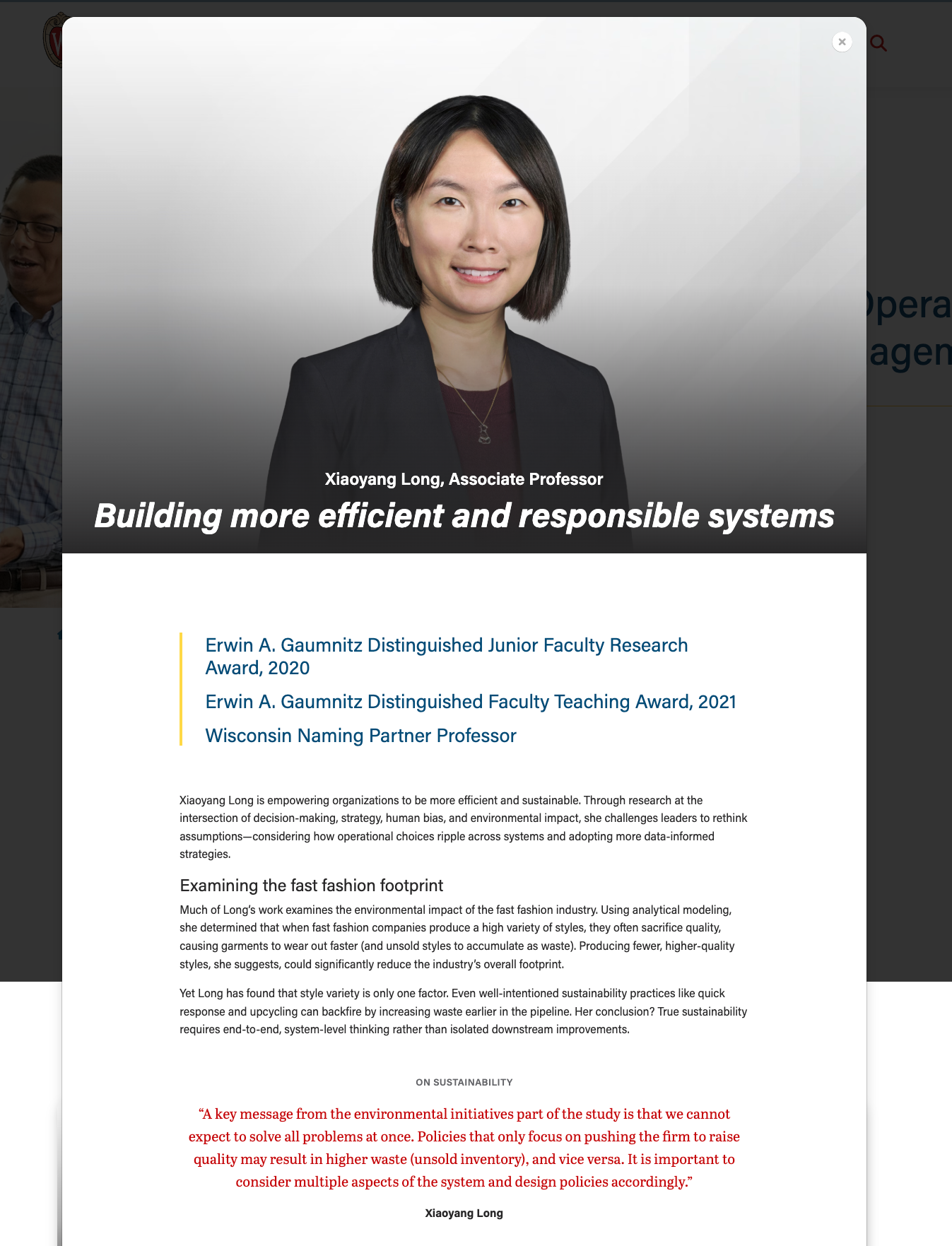

| Modal open - full-width header image
|

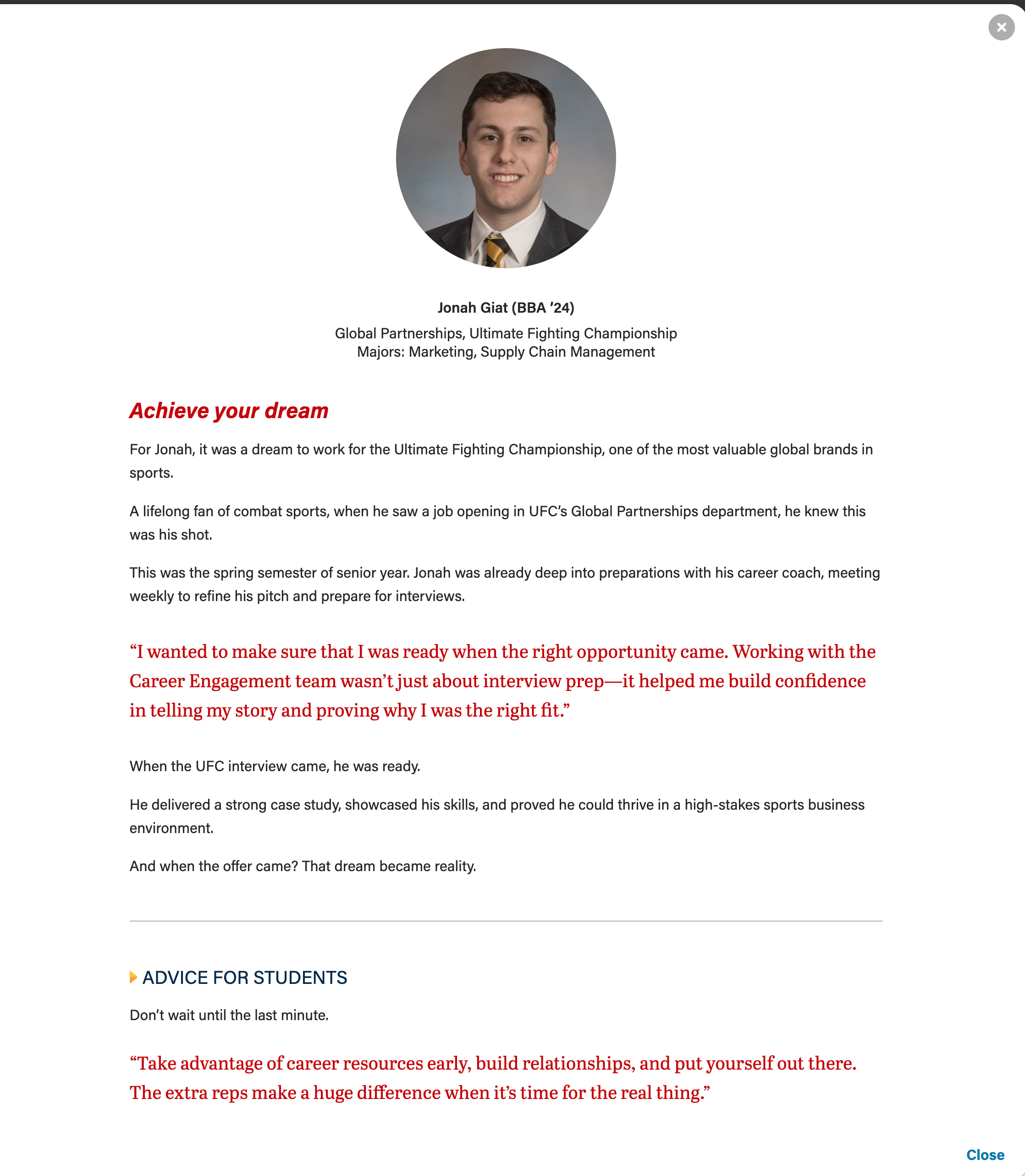

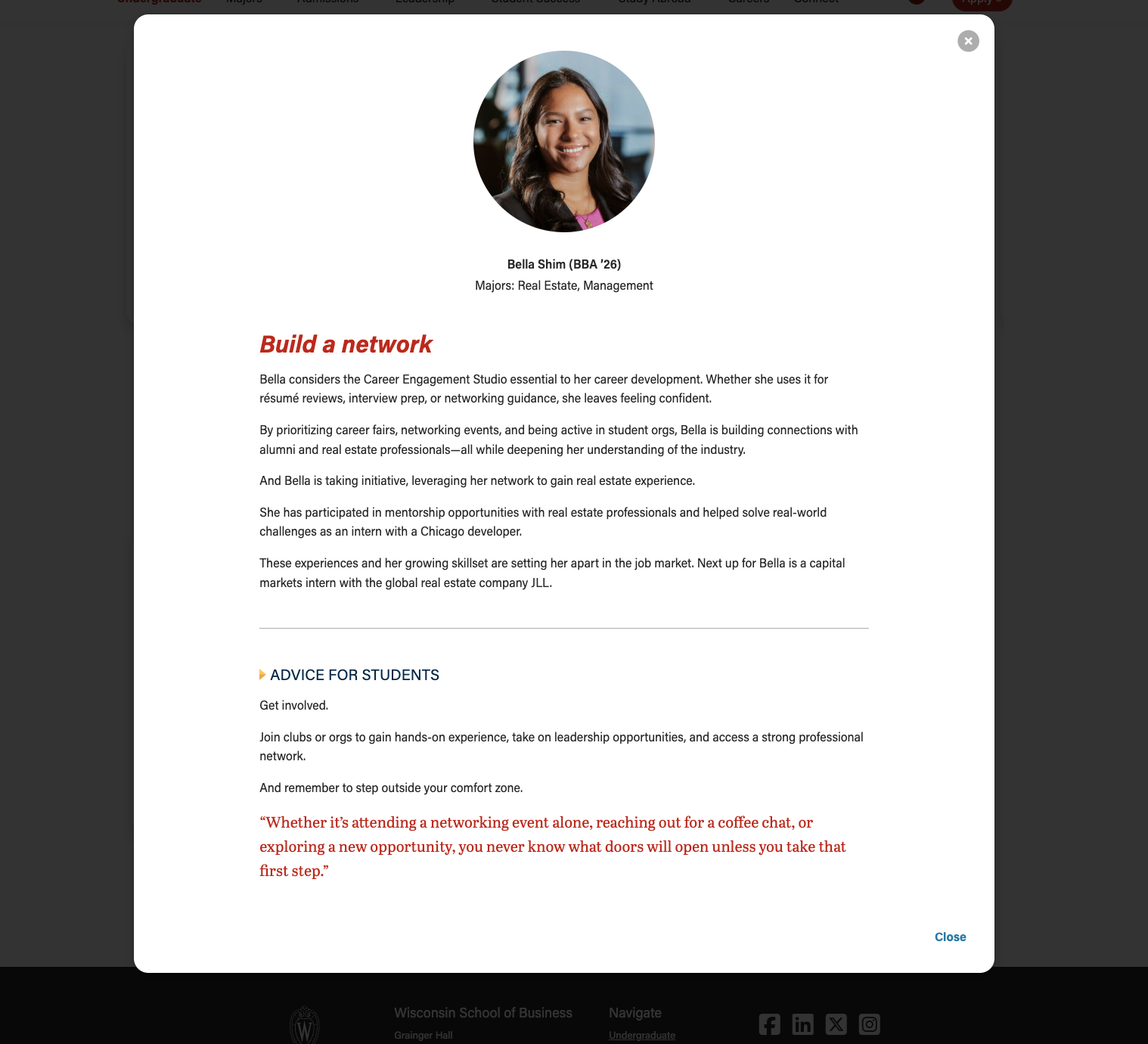

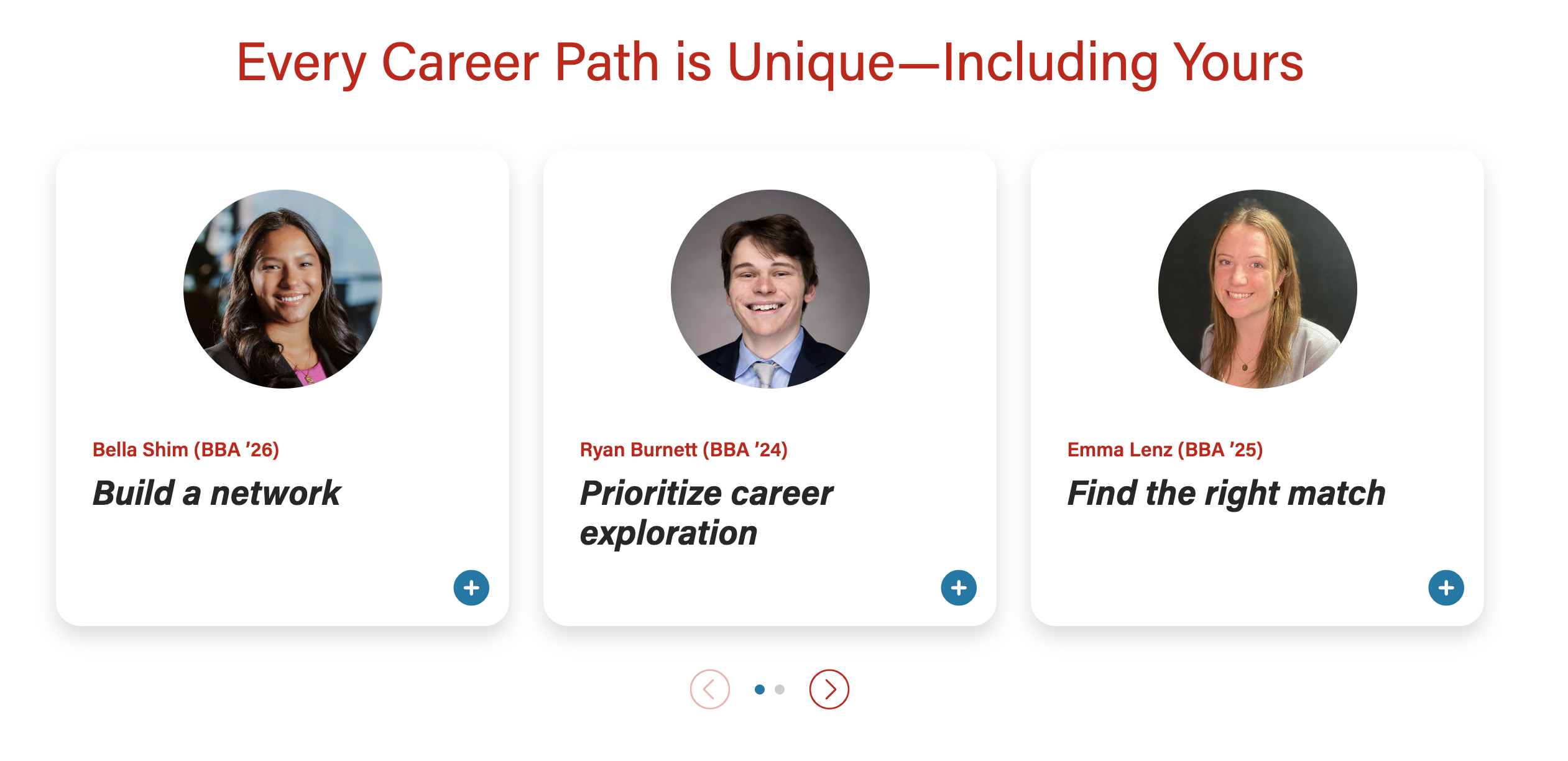

Cards with headshotsSource: BBA Careers
| Modal open
|

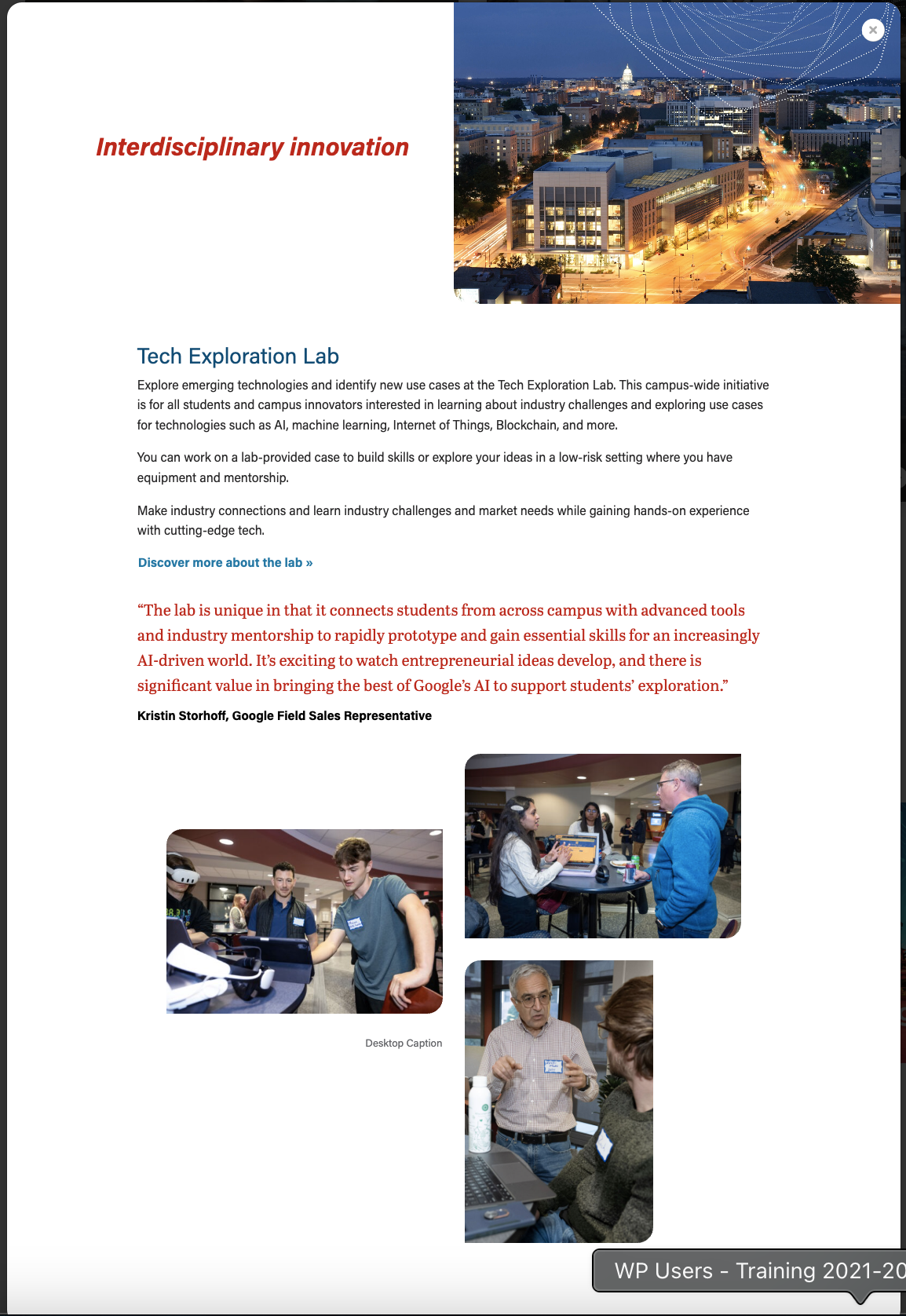

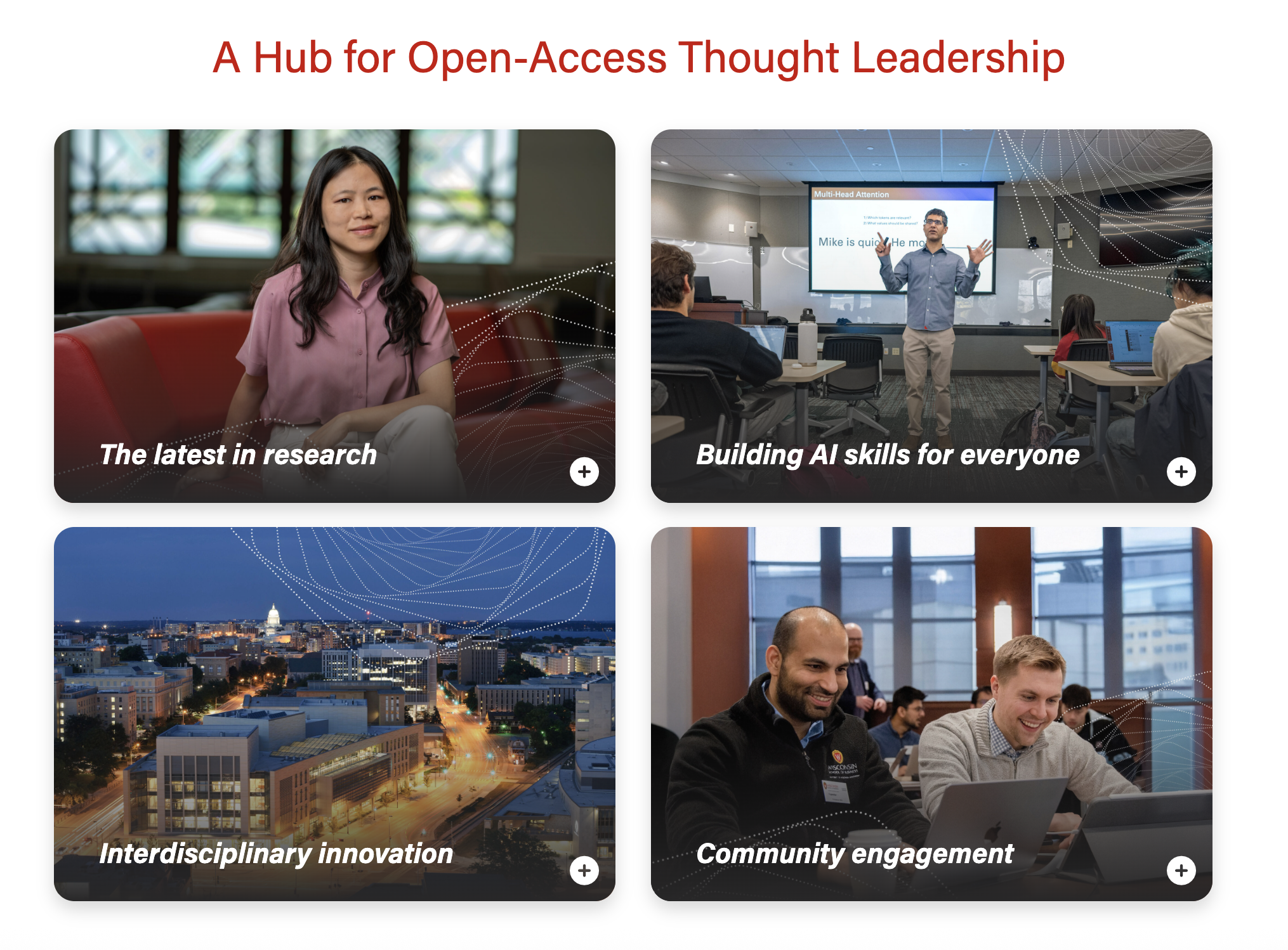

Cards with environmental or portrait photosSource: AI Hub
| Modal open - 50/50 header image
|
Use When
- Storytelling; sharing a person's profile or career background (examples: BBA Careers, Companies and Recruiters)
- Expanding on a topic (example: AI Hub page)
- You have content to fill at least 2 cards and their modals (this component doesn't look as nice when there is only one card)
- There needs to be enough quality content such that interacting with the modal feels worthwhile to the user.
- Don't just fill the modal with fluff to try to make this component work. If it is a struggle to create enough content for each of the cards, consider using a different component with less copy and/or organizing the content differently.
Editorial Guidelines
Follow our general Web Copy General Guidelines in addition to the following:
For the cards
For the modals
- Microtitle (optional)
- Card microtitle can be displayed here or hidden
- Title (required)
- Card title can be displayed here or overridden with a slightly longer title
- Character limit: 50 characters
- Supporting detail (optional)
- Brief copy to display job titles, company, and/or majors
- Character limit: 100 characters
Modal body
- No character limit, but keep the length within reason. Typically, modal content spans 3 to 6 short paragraphs or chunks of content.
- Follow web best practices for keeping content easy to digest and scannable
- Use subheadings if you include more than 2 paragraphs
- We can include a variety of content here, such as:
- paragraphs
- pullquotes
- supporting images
- photo collages
- an embedded YouTube video
Design Assets Needed
Images
Card photo (required)
- Circle crop photo
- Square photo with face centered; use a headshot or another type of photo where the person is facing the camera
- Dimensions: 500x500px or 1000x1000px
- jpeg file
- Full-width photo
- Standard horizontal photo; use a portrait or environmental shot
- jpeg file
- Face should be in top 1/3 of image so it doesn't get covered by text at the bottom
- We can add vertical images to make the cards taller, if desired. But all photos for cards in the same row/block should have the same dimensions.
- If the card photo will not work for the modal header photo, we can add an override for the modal
- Use case: You have a great, zoomed out shot of a professor teaching a class that works well in the modal header. But a different, zoomed-in shot works better for the card.
- Match the specs for the card photo provided.
- Note that this photo should be similar to the card photo (same person, similar pose, same outfit) so we don't cause user confusion. A similar photo will reassure the user that they opened the content and are seeing something they expect to see.
Modal supporting images (optional)
- We have a few options for adding images to the modal body. Work with a web developer.

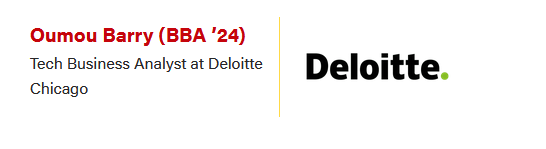

Company Logo
Logo displayed next to name, title, and company
- Logo specs: 512px wide, height will vary
Layout created for T2L4 landing page

DEV NOTES
* Where it says <img />, just use the Add Media button and add whatever photo you need.
* You do not need to edit the default classes WordPress adds to the image.
* Don't skip the divider element! If you forget it, the image won't appear.
CODE
<div class="name-title-company">
<div class="text-wrapper">
<p>
<span class="name">Name</span>
Title/Company
Location
</p>
</div>
<div class="divider"></div>
<div class="image-wrapper">
<img />
</div>
</div>

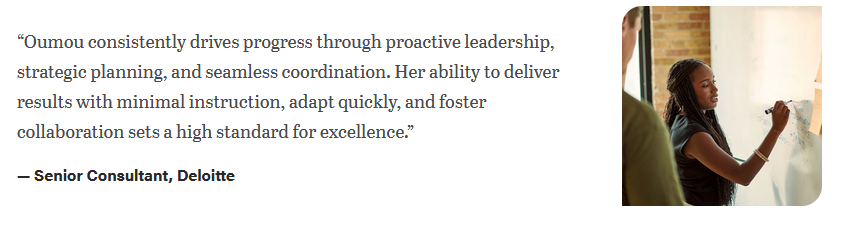

Image beside text
- Image can be on right or left side
- (optional) Text can be styled as a quote
- Text can include multiple paragraphs next to a larger image
- Layout created for T2L4 landing page

DEV NOTES
* The "image-right" class can be removed if you want the image on the left instead.
* Where it says <img />, just use the Add Media button and add whatever photo you need.
* You do not need to edit the default classes WordPress adds to the image.
* Make sure to include <p> tags around any text.
* Add the "modal-quote" class if you want quote styling like in the photo above: <p class="modal-quote">
CODE
<div class="modal-image-text image-right">
<div class="image-wrapper">
<img />
</div>
<div class="text-wrapper">
<p>Text Here.</p>
<p>Second paragraph.</p>
</div>
</div>

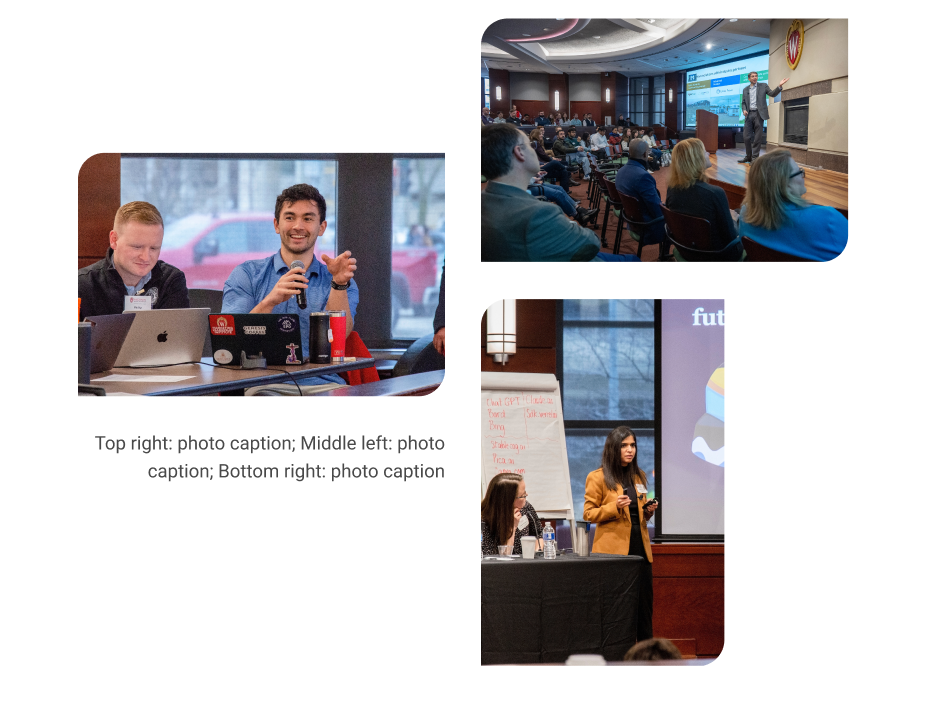

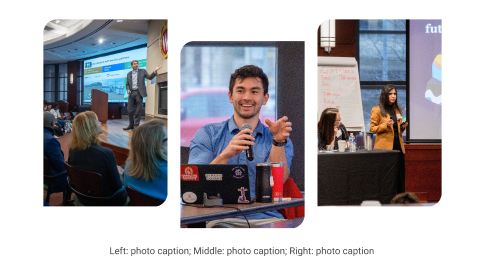

Staggered image collage
- Requires 3 vertical photos.
- Recommended size: 700x1000px

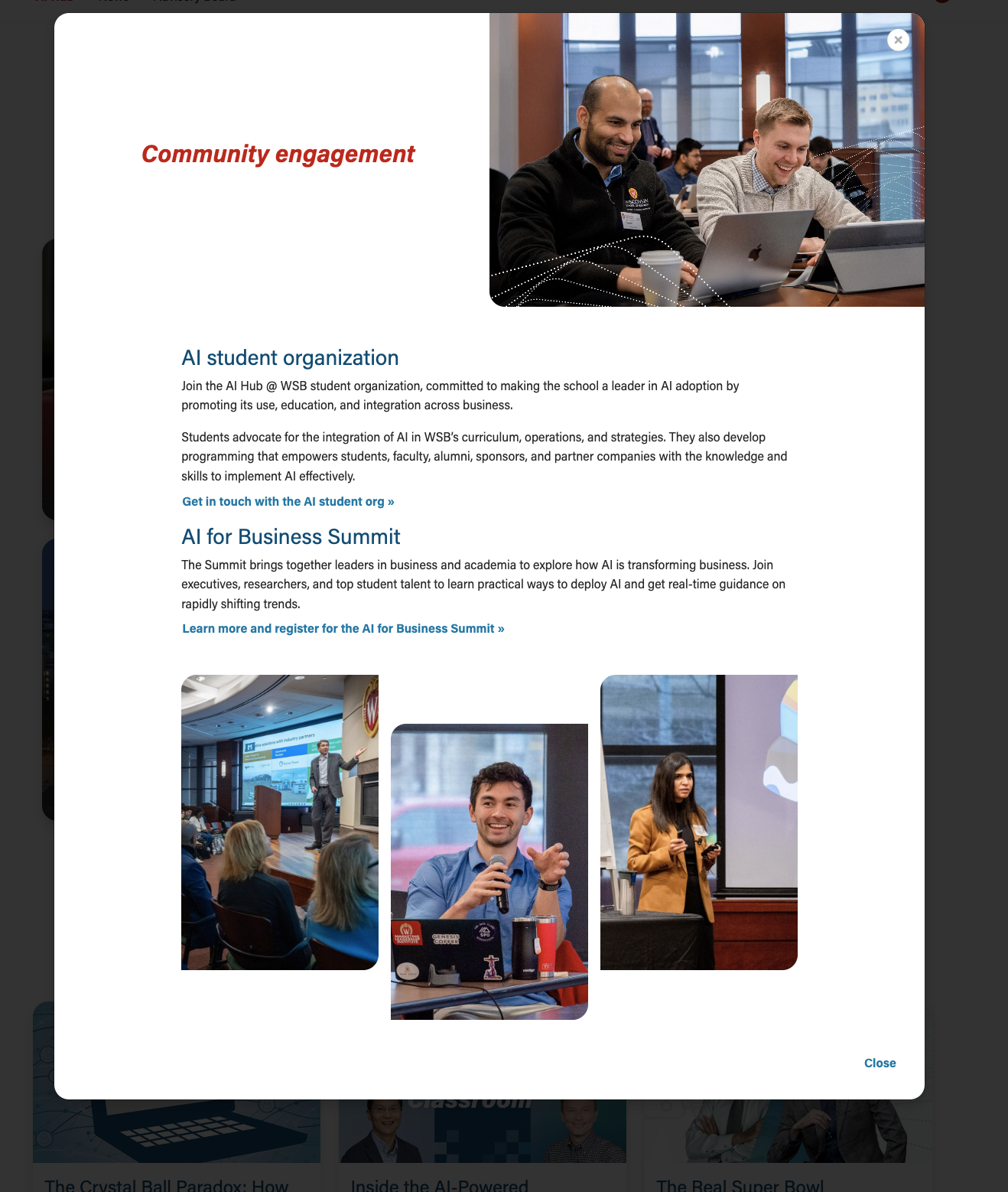

Detailed view Source: AI Hub
| Within modal
|
DEV NOTES
* Images two and three are hidden for mobile screens.
* Can use a single caption for all three images for desktop.
* The mobile caption should just be for image one, since the others are not visible at that point.
CODE - WITH CAPTION
<div class="staggered-wrapper mt-5">
<div class="staggered-image-one image-one">
<img decoding="async" class="image" src="" alt="" aria-describedby="staggered-collage-caption">
</div>
<div class="staggered-image-two image-two">
<img decoding="async" class="image" src="" alt="" aria-describedby="staggered-collage-caption">
</div>
<div class="staggered-image-three image-three">
<img decoding="async" class="image" src="" alt="" aria-describedby="staggered-collage-caption">
</div>
<div class="caption" id="staggered-collage-caption">
<p class="mobile-caption mt-0">Mobile Caption</p>
<p class="desktop-caption mt-1 text-center">Desktop Caption</p>
</div>
</div>
CODE - NO CAPTION
<div class="staggered-wrapper mt-5 mb-0 pb-0">
<div class="staggered-image-one image-one">
<img decoding="async" class="image" src="" alt="">
</div>
<div class="staggered-image-two image-two">
<img decoding="async" class="image" src="" alt="">
</div>
<div class="staggered-image-three image-three">
<img decoding="async" class="image" src="" alt="">
</div>
</div>
Mixed image collage
- Requires 3 images; 2 horizontal and 1 vertical
- Horizontal image specs: 2400x1600px, smaller images with the same aspect ratio will also work, such as 512x341px or 1024x682px
- Vertical image specs: 512x768px
Detailed view
| Within modal
|
DEV NOTES
* Image one and two must be horizontal, image three vertical
* Image two and three are hidden for mobile screens.
* Can use a single caption for all three images for desktop.
* The mobile caption should just be for image one, since the others are not visible at that point.
CODE - WITH CAPTION
<div class="mixed-layout-collage">
<div class="image-one">
<img decoding="async" class="image brand-border-radius" src="" alt="" aria-describedby="mixed-collage-caption">
</div>
<div class="image-two">
<img decoding="async" class="image brand-border-radius" src="" alt="" aria-describedby="mixed-collage-caption">
</div>
<div class="caption" id="mixed-collage-caption">
<p class="mobile-caption pt-2">Mobile Caption</p>
<p class="desktop-caption text-end">Desktop Caption</p>
</div>
<div class="image-three">
<img decoding="async" class="image brand-border-radius" src="" alt="" aria-describedby="mixed-collage-caption">
</div>
</div>
CODE - NO CAPTION
<div class="mixed-layout-collage">
<div class="image-one">
<img decoding="async" class="image brand-border-radius" src="" alt="">
</div>
<div class="image-two">
<img decoding="async" class="image brand-border-radius" src="" alt="">
</div>
<div class="image-three">
<img decoding="async" class="image brand-border-radius" src="" alt="">
</div>
</div>
Additional modal elements
- red pullquote
- gray horizontal rule
- microtitle (yellow triangle, subhead styled in all caps, dark blue text)

Pullquote
* Can adjust or remove "my-4" class if needed. Author and cite elements are optional.
<figure class="wsb-pullquote mx-0 my-4">
<p class="quote">add quote here</p>
<p class="author"><cite> add speaker name here</cite></p>
</figure>
Horizontal rule
* Removing "hr-gray" will make the line yellow instead.
<hr class="hr-gray my-5" />
Microtitle style for subheads (with yellow triangle)
* These styles can be used on any heading level.
<h3 class="microtitle mb-3"><img class="microtitle-arrow" alt="" src="/wp-content/uploads/2024/10/Two-toned-yellow-arrow-digital-100x164-1.png" width="9" height="15" aria-hidden="true" /> Subheading</h3>

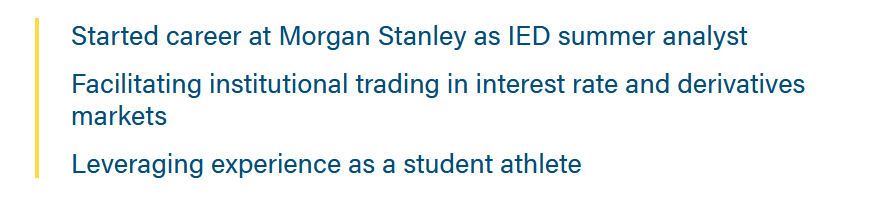

- Career Points (created for T2L4)

Career Points
* Add the "career-points" class to any ul to get this styling.
<ul class="career-points">
<li>Point 1</li>
<li>Point 2</li>
<li>Point 3</li>
</ul>

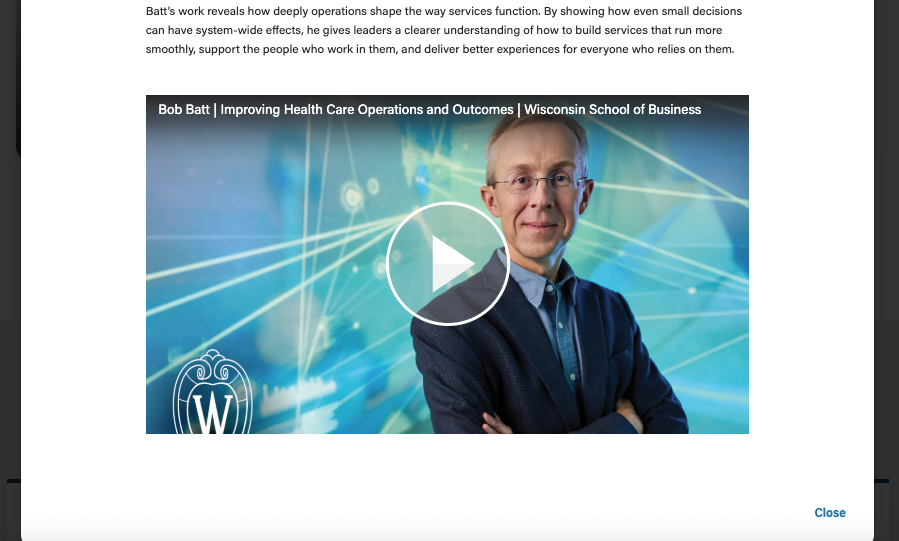

Lazy Load YT Video
* Requires adding 2 HTML code blocksto the page, one for CSS styles and one for JavaScript
* To generate the video code to add to the modal WYSIWYG, you will need to add a lazy load YT block
to a test page with the YT video, video name, cover image (if needed), and any other features. Then
view that page's source (or inspect it) and copy the block's code to then paste in the modal body. You
may have to modify the code slightly (you'll notice in example code below that line breaks were removed;
this is because the WYSIWYG field adds <p> tags when you add line breaks.)
CSS (place this above card modal block, in an HTML block)
<style>
/***********
CSS for Video in Card Modal
************/
.wp-block-embed__wrapper {
position: relative;
}
.title-text-youtube-background {
z-index: 21;
position: absolute;
background-image: linear-gradient(rgb(40,39,40),rgba(40,39,40,0.8),rgba(40,39,40,0.6),rgba(40,39,40,0.3),rgba(40,39,40,0.1), transparent);
top: 0;
width: 100%;
height: 20%;
}
.title-text-youtube {
z-index: 22;
position: absolute;
top: 7%;
left: 7%;
width: 98%;
color: #fff;
text-shadow: 0.5px 0.5px #646569;
transform: translate(-5%,-5%);
}
figure {
cursor: pointer;
}
@media only screen and (min-width: 992px) {
.title-text-youtube {
font-size: 1.125rem;
}
}
@media only screen and (max-width: 767px) {
.mobile-img-display-none {
display: none;
}
.title-text-youtube {
font-size: .8333rem;
line-height: 1;
top: 10%;
}
.title-text-youtube-background {
height: 30%;
}
}
//adds visible tabbing to the play button instead of the <a> surrounding it.
#videoButton {
display: block;
&:focus {
outline: none;
}
&:focus-visible .brand-play-button {
border: 2px solid #272827;
border-radius: 1.25rem;
}
}
// play buttons
.brand-play-button {
z-index: 21;
position: absolute;
top: 50%;
left: 50%;
width: 30%;
max-width: 170px;
transform: translate(-50%, -50%);
-webkit-transition: -webkit-filter 0.3s ease;
transition: -webkit-filter 0.3s ease;
-o-transition: filter 0.3s ease;
transition: filter 0.3s ease;
transition: filter 0.3s ease, -webkit-filter 0.3s ease;
cursor: pointer;
&:hover {
-webkit-filter: brightness(.8);
filter: brightness(.8);
}
}
.lightButton {
.st0 {
fill: #fff;
}
.st1 {
fill: #f2f2f2;
}
.st2 {
opacity: 0.3;
fill: #adadad;
}
.st3 {
fill:none;
stroke: #fff;
stroke-width: 11.6965;
stroke-miterlimit: 10;
}
.brand-play-button:hover {
-webkit-filter: brightness(.85);
filter: brightness(.85);
}
}
</style>
EXAMPLE CODE FOR MODAL (create your lazy load block, copy the html and place it inside card modal WYSIWYG field)
<div class="youtube-lazy-load">
<figure id="figurejibiBTbpDrQ" class="wp-block-embed is-type-video is-provider-youtube wp-block-embed-youtube wp-embed-aspect-16-9">
<div class="wp-block-embed__wrapper">
<div tabindex = "0" id="videojibiBTbpDrQ" class="youtube" data-embed="jibiBTbpDrQ" aria-label="Play video - Bob Batt | Improving Health Care Operations and Outcomes | Wisconsin School of Business">
<div class="title-text-youtube-background"><p class="title-text-youtube" id="titlejibiBTbpDrQ">Bob Batt | Improving Health Care Operations and Outcomes | Wisconsin School of Business</p></div><svg class="brand-play-button lightButton" alt="play button icon" aria-labelledby="titlejibiBTbpDrQ" version="1.1" id="videoButton" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" x="0px" y="0px" viewBox="0 0 500 500" xml:space="preserve"><g><circle class="st2" cx="249.9655" cy="249.2184" r="237.931"></circle><g><polygon class="st0" points="190.4828,136.6834 190.4828,249.2184 358.1911,249.2184 "></polygon><polygon class="st1" points="190.4828,361.7533 190.4828,249.2184 358.1911,249.2184 "></polygon></g><circle class="st3" cx="249.9655" cy="249.2184" r="237.931"></circle></g></svg></div></div></figure></div>
JAVASCRIPT (place this below card modal block, in an HTML block)
<script>
// JS for Video in Card Modal
let modalWithVideo = document.getElementById("Modal-2-block_7faf3c3dfcd424a179de872fc2b1f9fe");
// loads youtube api
var tag = document.createElement('script');
tag.src = "https://www.youtube.com/iframe_api";
var firstScriptTag = document.getElementsByTagName('script')[0];
firstScriptTag.parentNode.insertBefore(tag, firstScriptTag);
let lazyPlayerjibiBTbpDrQ = null;
var youtube = document.getElementById("videojibiBTbpDrQ")
//replaces placeholder div with YouTube thumbnail or image override
var source ="https://business.wisc.edu/wp-content/uploads/2024/08/Bob_T2L3-Thumbnails_Directory.jpg"
var image = new Image();
image.src = source;
image.alt = "Youtube Thumbnail for Bob Batt | Improving Health Care Operations and Outcomes | Wisconsin School of Business"; //Tells screenreaders that the image is labelled by the title of video
youtube.appendChild( image );
youtube.addEventListener( "click", replacevideo );
youtube.addEventListener( "keyup", replacevideo );
function replacevideo(e) {
if (e.type == "click" || e.key === 'Enter' || e.key === ' ') {
// Added to remove extra space above video
var element = document.getElementById("figurejibiBTbpDrQ");
element.classList.add("wp-has-aspect-ratio");
//creates iframe
var iframe = document.createElement( "iframe" );
iframe.setAttribute( "frameborder", "0" );
iframe.setAttribute( "allowfullscreen", "" );
iframe.setAttribute( "src", "https://www.youtube.com/embed/"+ this.dataset.embed +"?rel=0&showinfo=0&autoplay=1" );
var dataEmbed= this.dataset.embed;
this.innerHTML = "";
this.appendChild( iframe );
var videoId=this.id;
var player = new YT.Player(videoId, {
height: '390',
width: '640',
videoId: dataEmbed,
playerVars: {
'playsinline': 1,
'rel': 0 // related videos are from same YT channel
},
events: {
'onReady': onLazyPlayerReady,
}
});
}
}
function onLazyPlayerReady(event) {
//plays video upon load
lazyPlayerjibiBTbpDrQ = event.target;
lazyPlayerjibiBTbpDrQ.playVideo();
}
modalWithVideo.addEventListener('hidden.bs.modal', function (event) {
lazyPlayerjibiBTbpDrQ.pauseVideo();
});
</script>
Implementation
ACF Fields
Card
Remind writer/strategist to limit the amount of copy in the cards, since more detail can be shown in the modal. This is especially true for the full-width photo layout, since we don't want the copy to wrap and be so tall it covers faces in the card photos.
- Microtitle (optional) - Keep this short.
- This content will display in the modal header by default. Set the "Display card microtitle in modal header?" field to "no" if you want to hide it in the modal
- Title (required) - This field must have content so the card has an html heading
- This content will display in the modal header by default. Add content to the "Modal Title Override" field to replace it.
- Card Supporting Copy (optional) - Used sparingly.
- Use this field or the microtitle field, especially for cards with full-width background images.
- This content will not be displayed in the modal
- Card Image
- For circle crop - face must be centered in a square photo
- For full-width image - face should be in top 1/3 of the image
- If the face is too low in the photo, you can try to crop ~100px off the top of the image inside WP media library.
- If using a vertical photo for the card, you will need to add a horizontal version to the modal image override field for the image to display correctly at the top of the modal.
- Crop image to circle? - use for square images, including headshots
- Display card microtitle in modal header? - true/false, pulls Microtitle subfield from Card and displays in modal above title.
- Full width image? - makes image full width inside the modal header instead of half width.
- Recommend using Modal Image Override field with this, to ensure the card image and modal image work well in each case.
- Modal Title Override - Use this to override the card title with different text for the modal header. This field can have more characters than the card title, but it's still best practice to keep the title short.
- Supporting Details - WYSIWYG for displaying job title, company, or majors
- Modal Image Override - Use this to override the full-width card image. It is unlikely you will need this field for circle crop images.
- Modal Text - WYSIWYG for modal body content. You will need to use inline HTML and CSS classes for styles.
- Copy code snippets found on this page for consistent styling.
Configuration
- Number of columns - you can select one, two, or three columns. Three columns is the default.
- The headshot/circle crop style should only be used with two and three column layouts. (The image looks too small for a card in a single column layout)
- If you run into issues with card copy being too long, either ask the copywriter to shorten the copy or reduce the number of columns from 3 to 2.
- Stretch link? - this will make the modal open when a user selects anywhere on the card. Checked is the default.
- These are standard sections for our custom blocks.
Resources
